Update an Analytic Rule Entity Mapping

This page contains instructions on how to update an analytic rule's entity mapping and also provide information to configure basic entity mapping if it's not already configured.

What is Entity Mapping

Entity mapping is a feature of Sentinel Analytic Rules that allows column data to be mapped to different types of entities. This feature is useful for providing context to alerts / incidents.

There are different entity types such as Account, IP, Process and File. Each entity type will have different identifiers that you can map to it, for example IP has the Address identifier and Account has the Sid identifier. The identifiers are associated with a column in the KQL query. For example, the IP entity will have the Address identifier mapped to a column of SourceIPAddress.

Instructions

  1. Go to the affected Sentinel workspace.

    If you are unsure where to find your workspaces, visit this link -> https://portal.azure.com/sentinel.

  2. Once you have selected your Sentinel workspace, on the left hand side of the screen, navigate to Configuration -> Analytics.

    (You may need to expand the sub-menus).

  3. Search for and select the affected analytic rule.

  4. Click on the Edit button.

    If the rule fly-out menu is not opening when selecting the rule, go to the right of the rule and click on the 3 dots button -> Edit.

  5. Select the Set rule logic tab.

    Analytic Rule Set Rule Logic Tab

  6. Locate the Alert enhancement -> Entity mapping section.

    Here is the section where you will define the entity mapping for the analytic rule. Combinations of 3 entities are typically best; However, if you map more than 3, it is best to refine the incident grouping settings to ensure you either don't over group on all entities and only group on the essential entities.

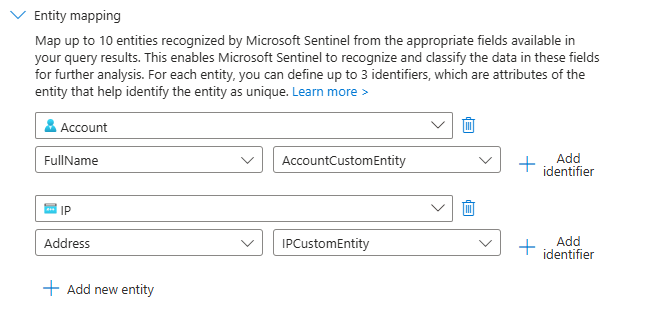

    Analytic Rule Entity Mapping Example

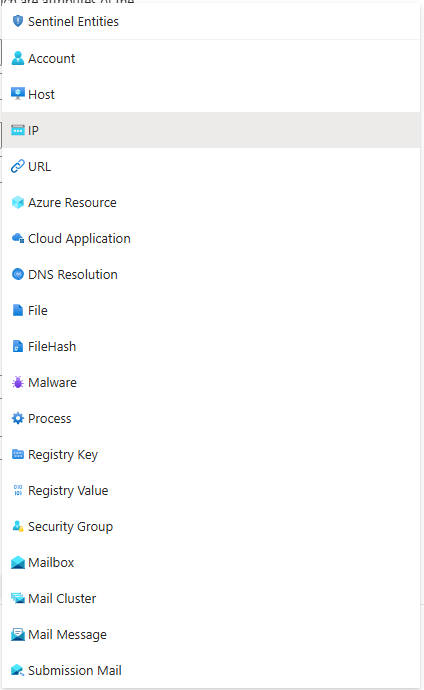

    Analytic Rule Entity Mapping Entities

    Microsoft provides a reference page for different types of entities you can map and their associated identifiers.

  7. Configure the entity mapping based on the detection rule needs.

  8. Select the Review + create tab.

    Analytic Rule Review and Create Tab

  9. At the bottom of the page -> click on the Save button to save the changes to the analytic rule.
