Update an Analytic Rule Alert Overrides

This page contains information and instructions for configuring / updating an analytic rule's alert overrides.

What are Alert Overrides

Alert overrides are a feature of Sentinel Analytic rules which allow you to dynamically configure different properties from column values in the alert's KQL query such as the Title, Description, Severity and more.

For example, you can configure an alert’s Severity dynamically based on an extended column. The example query snippet below demonstrates how to create an extended column that can be used for alert overrides. In this example, if the condition in the expression evaluates to true, the Severity is set to High; otherwise, it defaults to Medium.

| extend Severity = iff(true == true, "High", "Medium")

Instructions

  1. Go to the affected Sentinel workspace.

    If you are unsure where to find your workspaces, visit this link -> https://portal.azure.com/sentinel.

  2. Once you have selected your Sentinel workspace, on the left hand side of the screen, navigate to Configuration -> Analytics.

    (You may need to expand the sub-menus).

  3. Search for and select the affected analytic rule.

  4. Click on the Edit button.

    If the rule fly-out menu is not opening when selecting the rule, go to the right of the rule and click on the 3 dots button -> Edit.

  5. Select the Set rule logic tab.

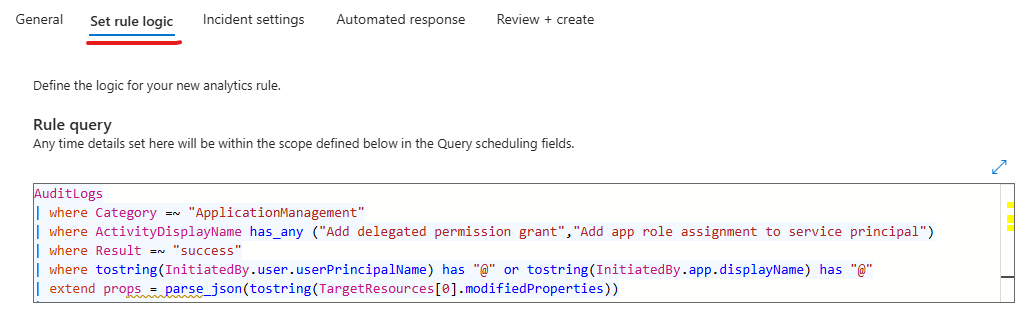

    Analytic Rule Set Rule Logic Tab

  6. Locate the Alert enhancement section and expand the Alert details sub-section.

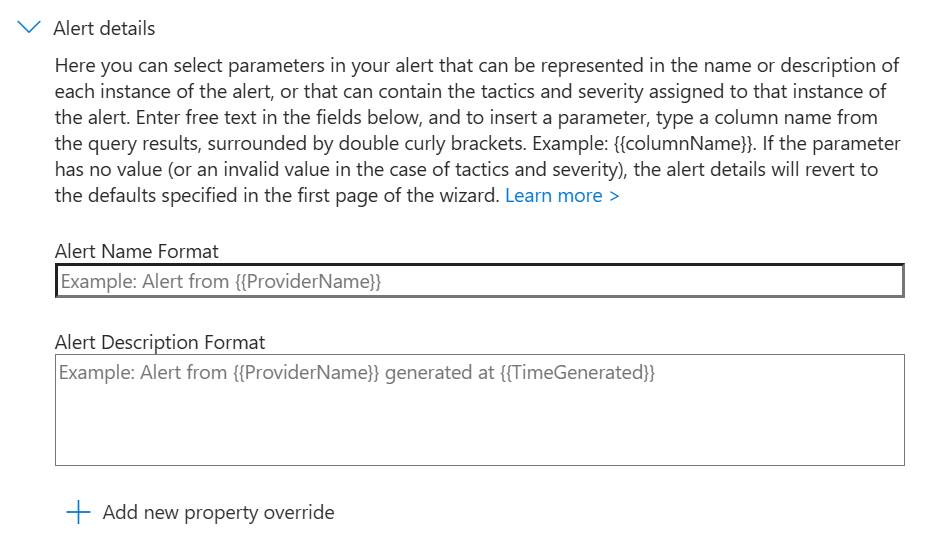

    Analytic Rule Alert Overrides Default

  7. Next, configure the alert details (alert overrides) to meet your needs for the analytic rule.

    The Alert Name Format allows you to override the alert / incident title.

    The Alert Description Format allows you to override the alert / incident description.

    To inject a column value into the override, it must be referenced between two sets of brackets. For example, {{ UserName }} would inject the UserName column value.

    {{ UserName }} logged into {{ DeviceName }} from {{ SourceIPAddress }}

    An important note to remember, Microsoft limits 3 injected columns per field. What this means, is if the example above was to add a forth column, you wouldn't be able to save as the limit is 3.

    To override a specific property, click on the Add new property override, select the property. Once selected, select the column to map to the property override. The below example, demonstrates overriding the severity property.

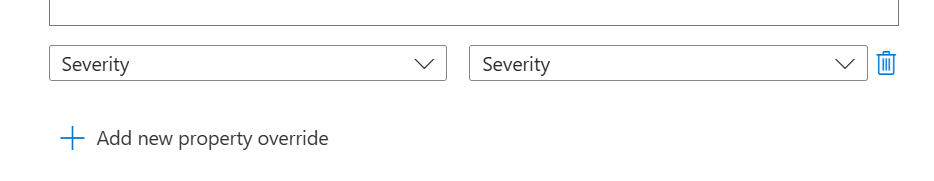

    Analytic Rule Alert Override Severity

    For more information on the specific alert proper overrides, please see the Microsoft Documentation - How to customize alert details table.

    Additionally, please take note of the service limits.

  8. Select the Review + create tab.

    Analytic Rule Review and Create Tab

  9. At the bottom of the page -> click on the Save button to save the changes to the analytic rule.
